Reviewing the Mail Piece Specifications

NOTE: Some systems may not be available in all markets.

Envelope Dimensions

Minimum	89 mm x 127 mm
Maximum	254 mm x 356 mm

Envelope Thickness

Minimum

0.18 mm

Maximum

Connect+™ 1000 and Connect+™ 2000/500W: 16 mm

Connect+™ 3000: 19 mm

Envelope Flap Depth for Sealing

Minimum	25 mm
Maximum	98 mm

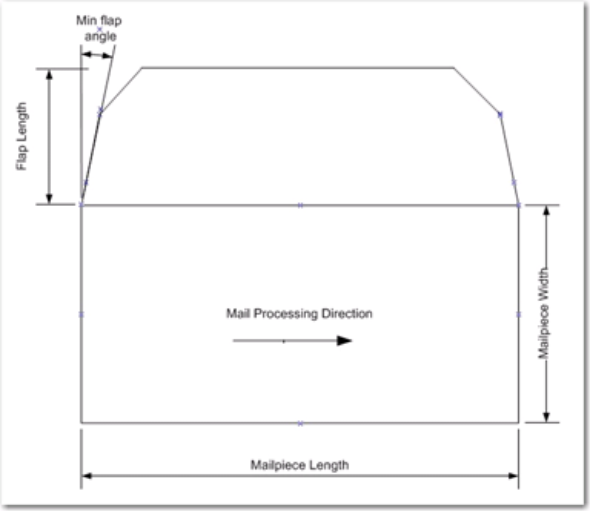

For envelopes with a flap length from 25 mm to 60 mm, the minimum flap angle is 18 degrees.
For envelopes with a flap length greater than 60 mm to 98 mm, the minimum flap angle is 21 degrees.

Acceptable Envelope Materials

Material type and finish must be matte and may include (if available in your market):

• Standard envelope paper

• Self-mailers

• Tri-fold mail

• Pre-sealed envelopes

Envelope Flap Profiles

• Commercial (square and baronial)

• Executive

• Monarch

CAUTION: Do not use envelopes or fliers made with glossy materials. Also, do not use envelopes (such as air mail envelopes) that are too fragile to pass through the feeder.
