Envelope feeding maintenance on the
Connect+ 1000, SendPro P1000

If you experience envelope stoppage on your system, follow the steps here to clear the stoppage and perform the recommended maintenance operations to prevent further stoppages.

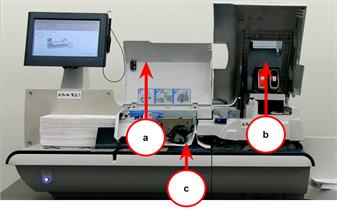

1. Lift the (a) feed cover and the (b) printer cover and locate the jammed mailpiece(c).

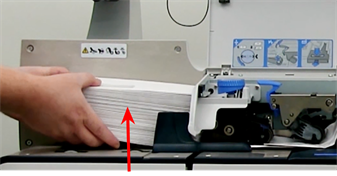

2. Remove the envelopes from the feed deck.

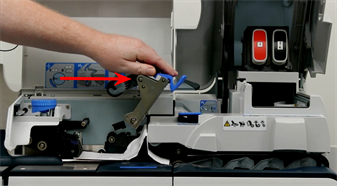

3. Pull the top release lever up and to the right.

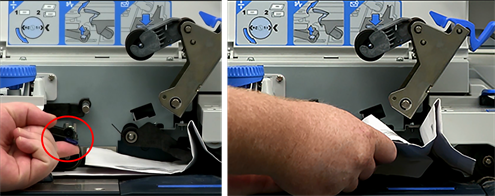

4. Lift up on the lower release lever with one hand and remove the envelope with the other.

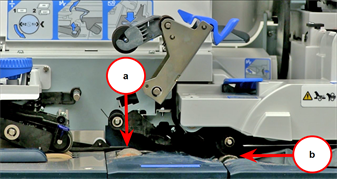

5. Examine the (a) sealer roller and (b) printer entrance roller for dirt and gunk.



6. Fill a water-spray bottle and spray water on a lint free cloth.



7. Wipe any dirt or gunk off the sealer roller.

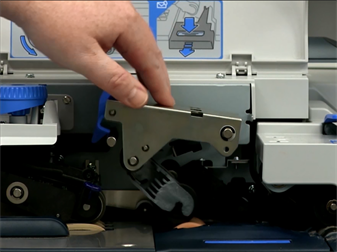

8. Close the top release lever and lock in place.

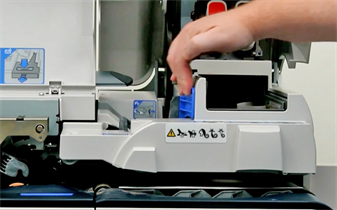

9. Lift up the printer transport release lever and push to the right.

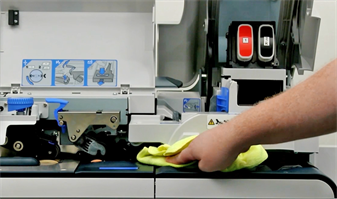

10. Remove any envelopes from the printer deck and wipe the printer entrance roller and printer deck clean using another damp lint-free cloth.

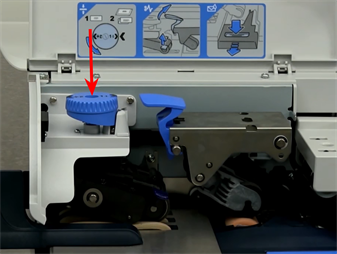

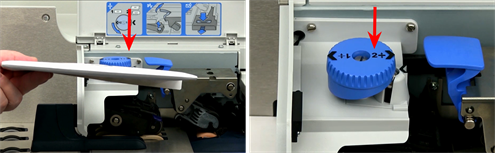

11. Set the thickness adjustment knob.

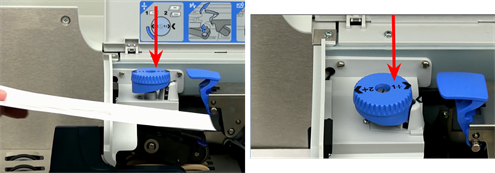

    1. For thicker mailpieces that are greater than .375 inches (9.52 mm) to the maximum of 0.625 inches (15.9 mm) thick, use a setting of 2.



    2. For postcards and mailpieces that are 0.007 inches (0.18 mm) to 0.375 inches (9.52 mm) thick, use a setting of 1.



12. Close the feed and printer covers.

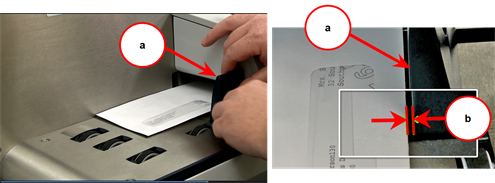

13. Adjust the (a) side guide on the feeder deck to accommodate the width of the envelope. The space between the envelope and side guide should be approximately (b) 1/16 inch (1.59 mm).



14. Prepare the envelopes for the feed deck.

    1. Make sure all the envelopes are the same size for a mail run.

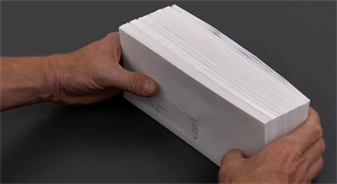

    2. Align the stack of envelopes by tapping the stack on a flat surface.



    3. Fan the envelope stack.

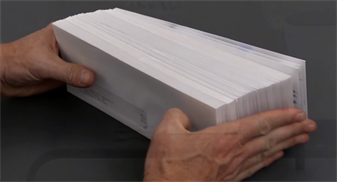

    4. Shingle the stack (slant as shown).

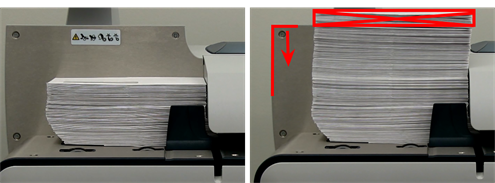

    5. Place the stack on the feed deck with the envelope flaps down and against the rear wall. Make sure the stack is not too high.



       Correct

       Incorrect
